Redington Beach, FL

Ruud 4 ton 15.2 seer2 heat pump with 5kw Miami dade pad with 36” stand Use existing air handler stand 1” filter rack Safety switches Use existing pump New thermostat Remove existing equipment Connect to existing ducts and electrical Seal unit to code Tax labor and permit included 10 year parts warranty 3 year labor warranty

On arrival found unit not cooling due to low refrigerant. Found leak in evaporator coil. Will submit estimate for replacement. Pump refrigerant into condenser due to severity of leak.

Performed tuneup on system Diagnostic -unit is low on refrigerant either indicating a leak or not charged properly from install (home owner states it wasn’t the best install experience) -air handler coils impacted with debris (will need light cleaning) -condensate pump does not have “p trap” Explained we can do a leak search or charge system in meantime to monitor since it’s our first time out Scope of work -performed full system tuneup -charged system back to factory specs Only charging 50$ diagnostic since doing tuneup

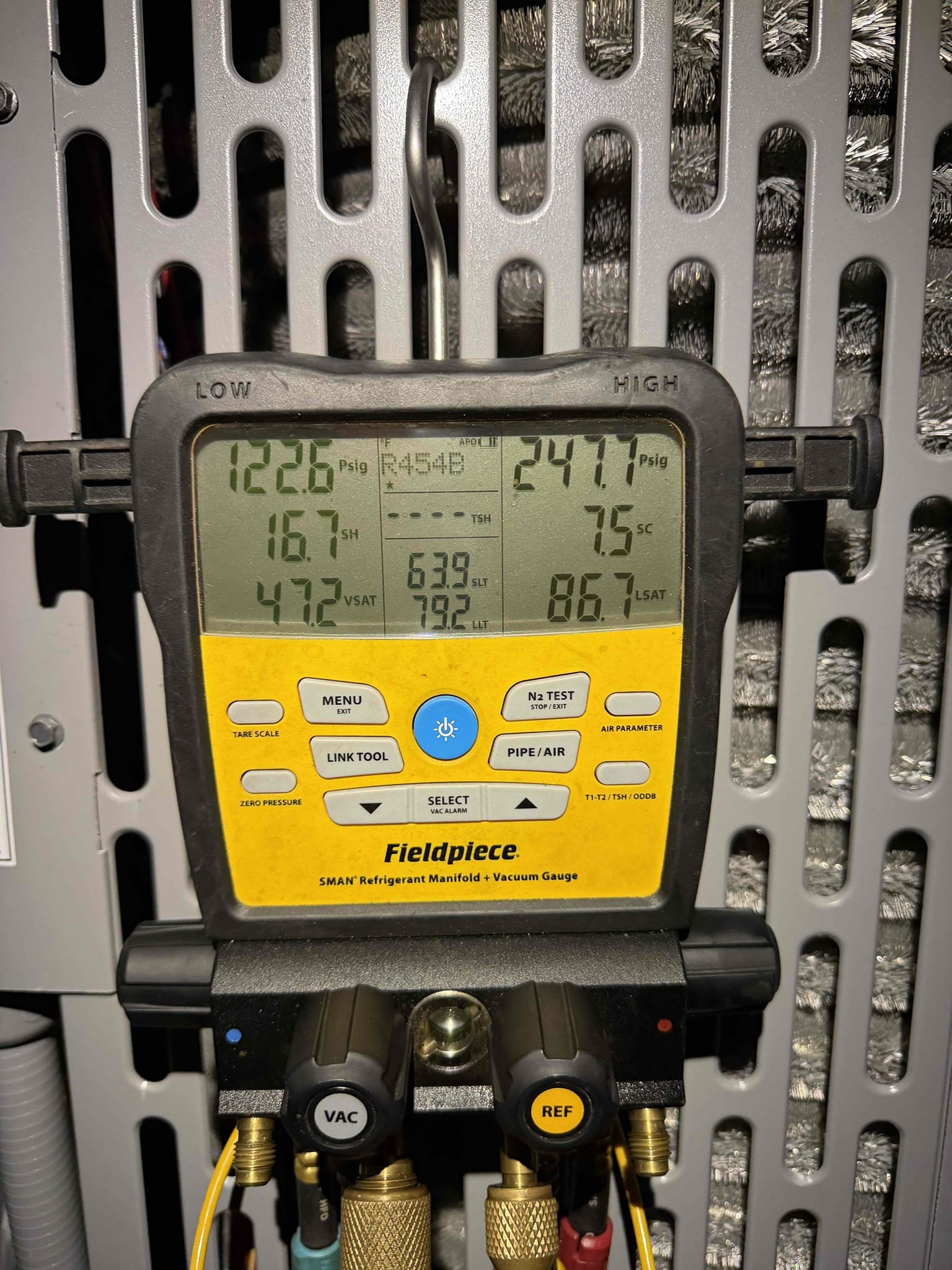

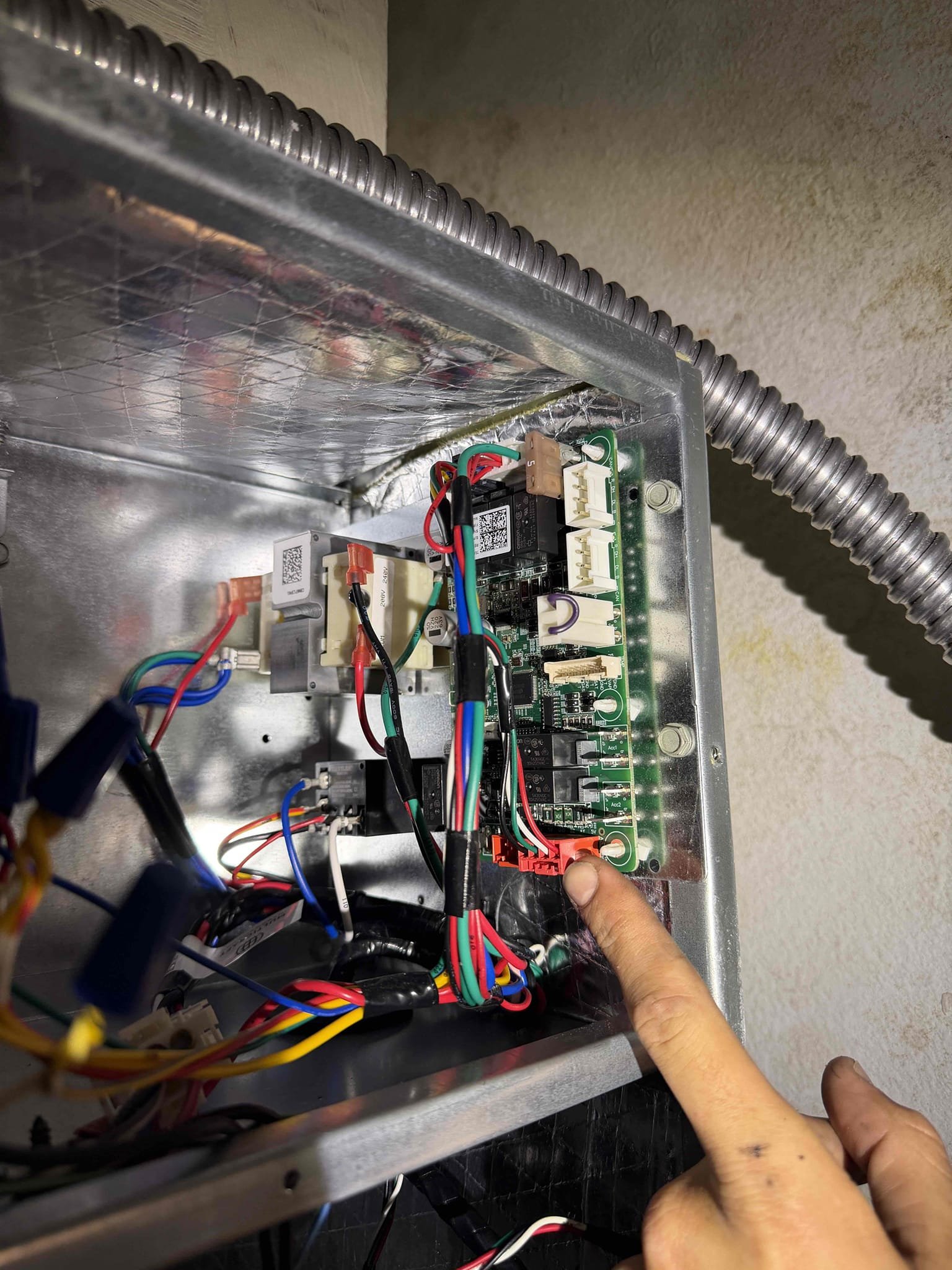

Client states that they just had an inspection and system was running. Old owners left and took a sensor that the thermostat was connected to for ecobee. Disconnected this sensor from the thermostat to remove error code. Found condenser not getting high voltage. Service disconnect is too loose and not passing power to condenser. Replacement of the disconnect is required. Found no low voltage at the condenser. Found faulty A2L sensor. Bypassed sensor as a temporary solution but will need to return to replace sensor. Quote will be sent for replacement. System is cooling at this time with a 19° temp split and good pressures.

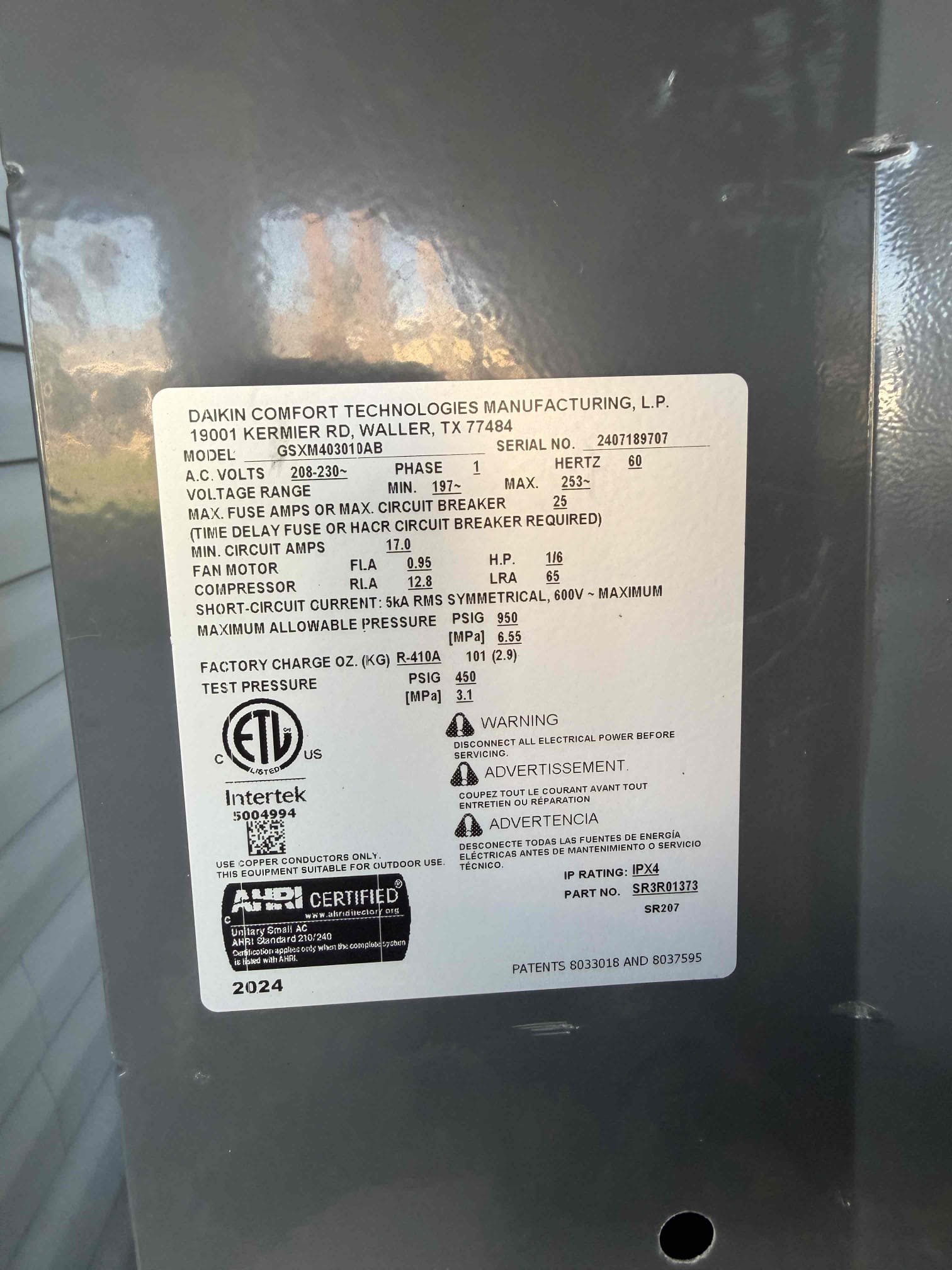

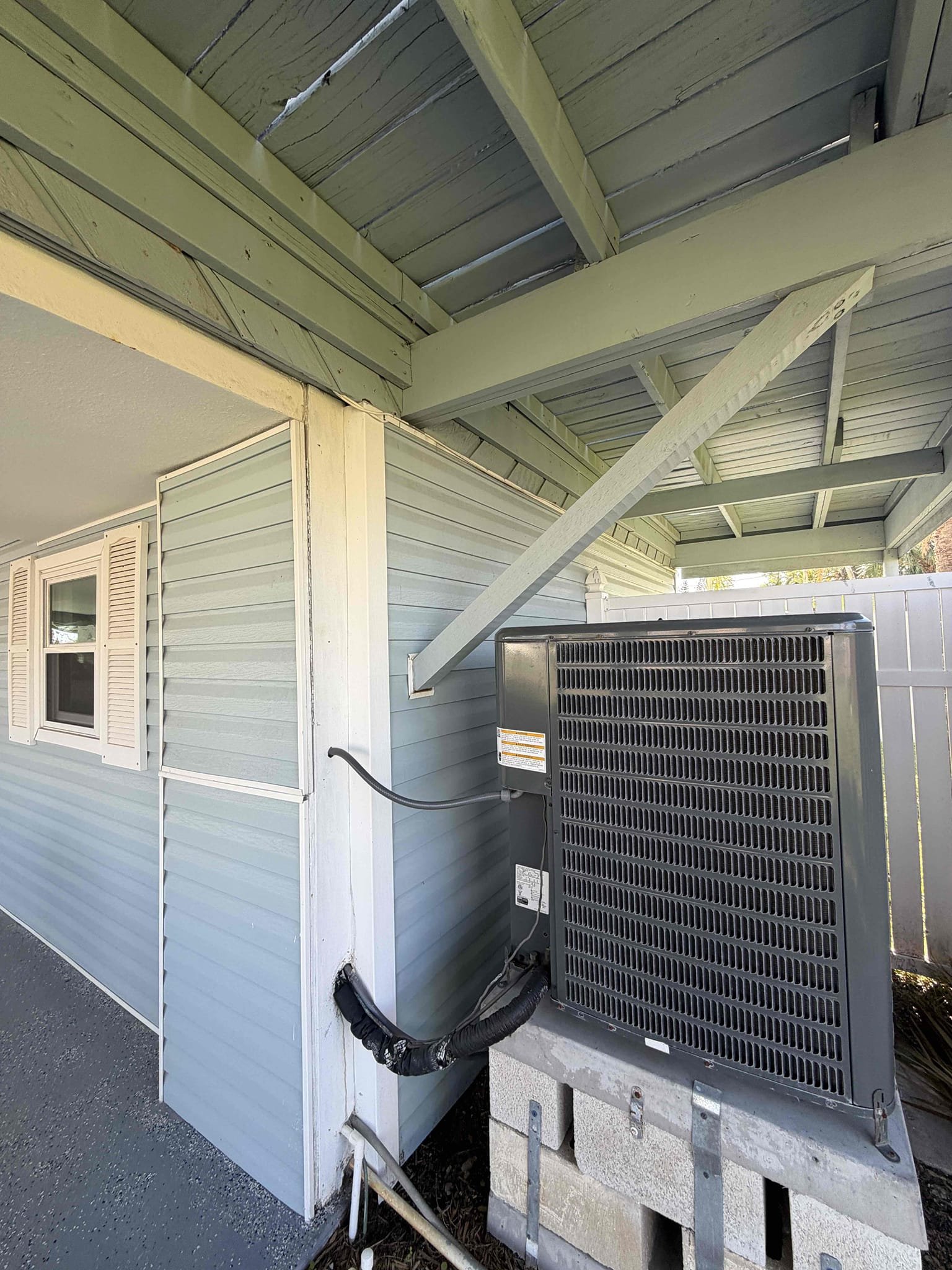

Performed Maitenence on system. Cleaned/treated drain line and primary drain pan. Cleaned condenser coils. Evaporator coils are clean. Verified safety float switch functionality. Checked amp draw on compressor. Checked amp draw on fan motor. Checked capacitor is within factory range. Inspected Contactar. Made sure all connections are tight. System is cooling with a 20° temperature split at this time. System is mix matched years and brands. Drain line is severely clogged. Used nitrogen and could not get good suction. Offered options for replace or replacement. Duct work complaints: - living room heats and cools much faster than bedrooms. - Bathroom doesn’t heat up enough compared to the rooms. Solutions: Duct work- $8950 refer to duct proposal New supply ducts New boots 3 cut in return ducts connect to existing return plenum New supply plenum Seal return plenum Not include drywall repair Condenser relocation- $2900 refer to proposal Extend copper and electrical up to new l

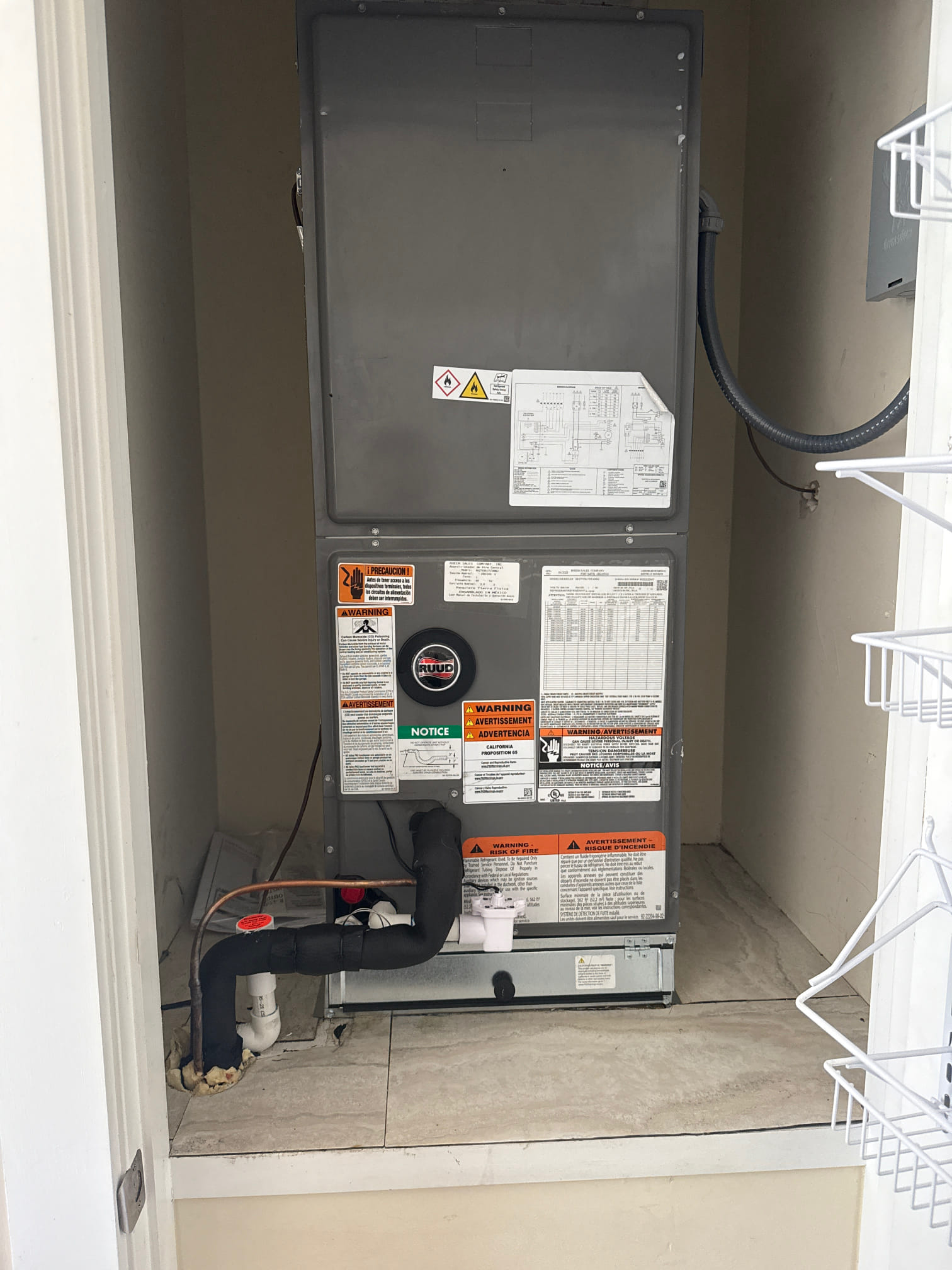

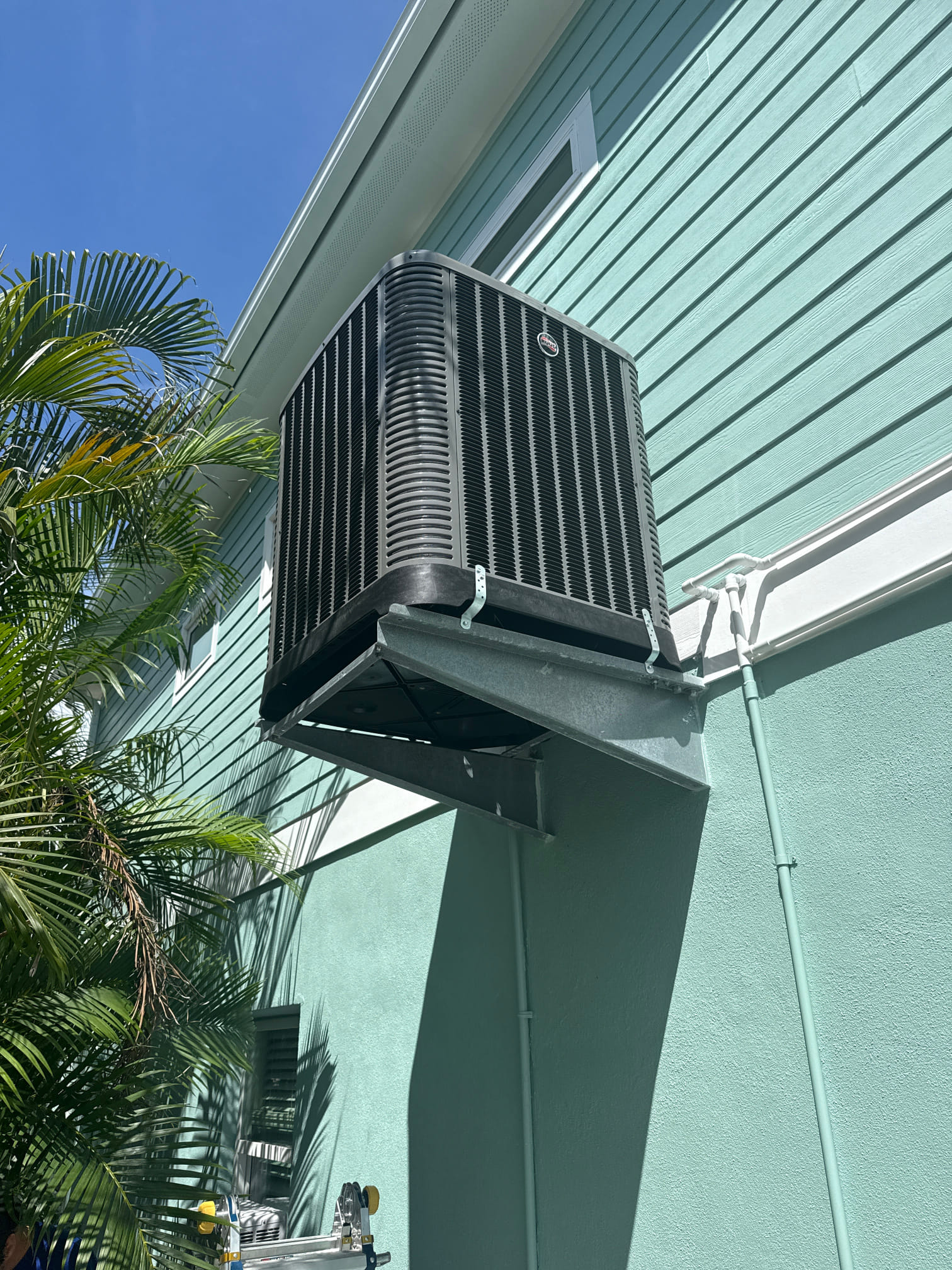

Furnish and install the following 3 ton Ruud 15.2 SEER2 heat pump split system with 5kw heater Bring Plywood Genie lift Anchor condenser 1” filter rack Primary float Clear drain Uv rated armoflex for outdoor copper Refrigerant locking caps Remove existing equipment Connect to existing ducts and electric Seal unit to code Program existing thermostat 10 year parts warranty 3 year labor warranty Tax labor and permit included Includes refund of $95 service fee.

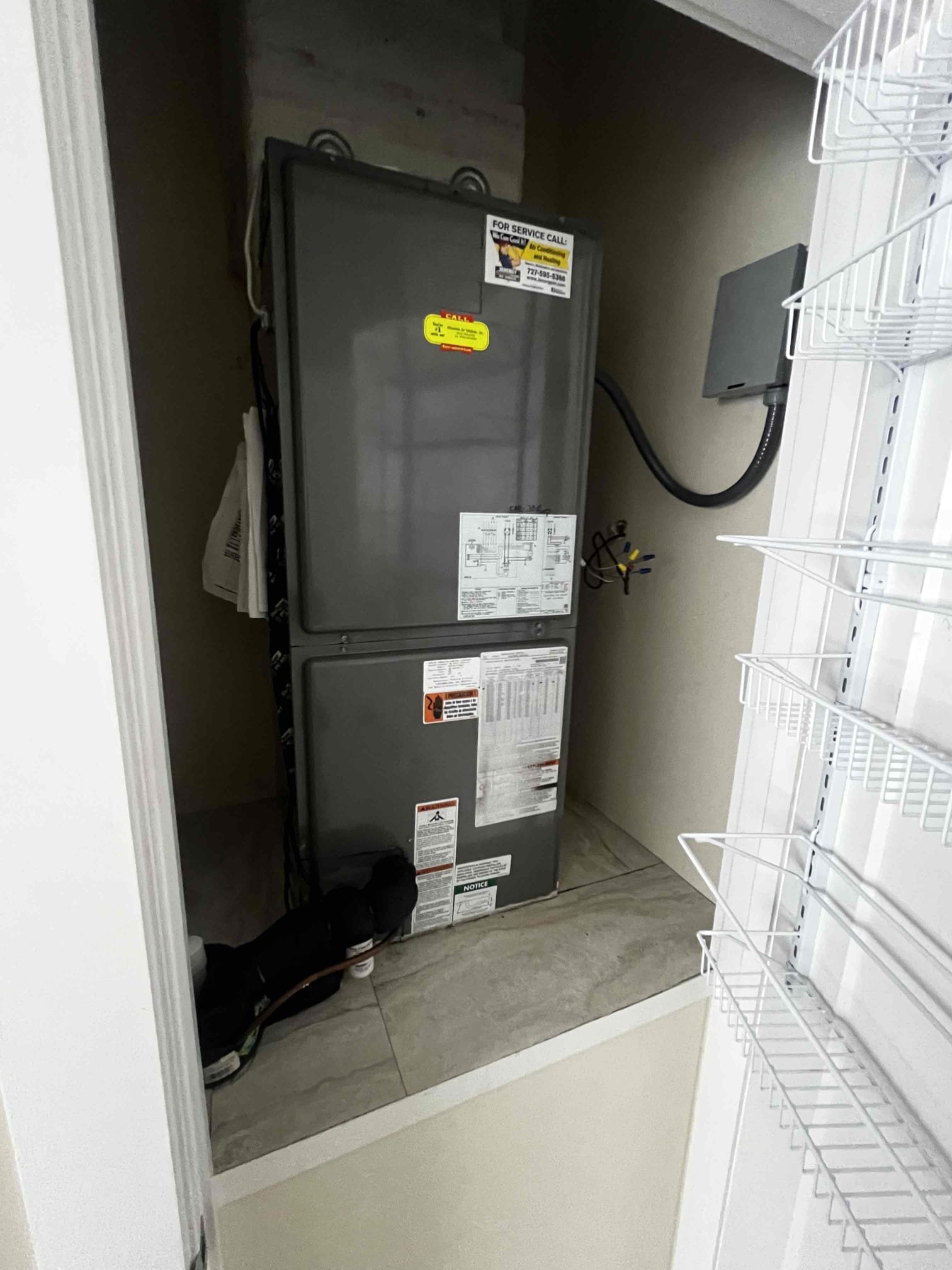

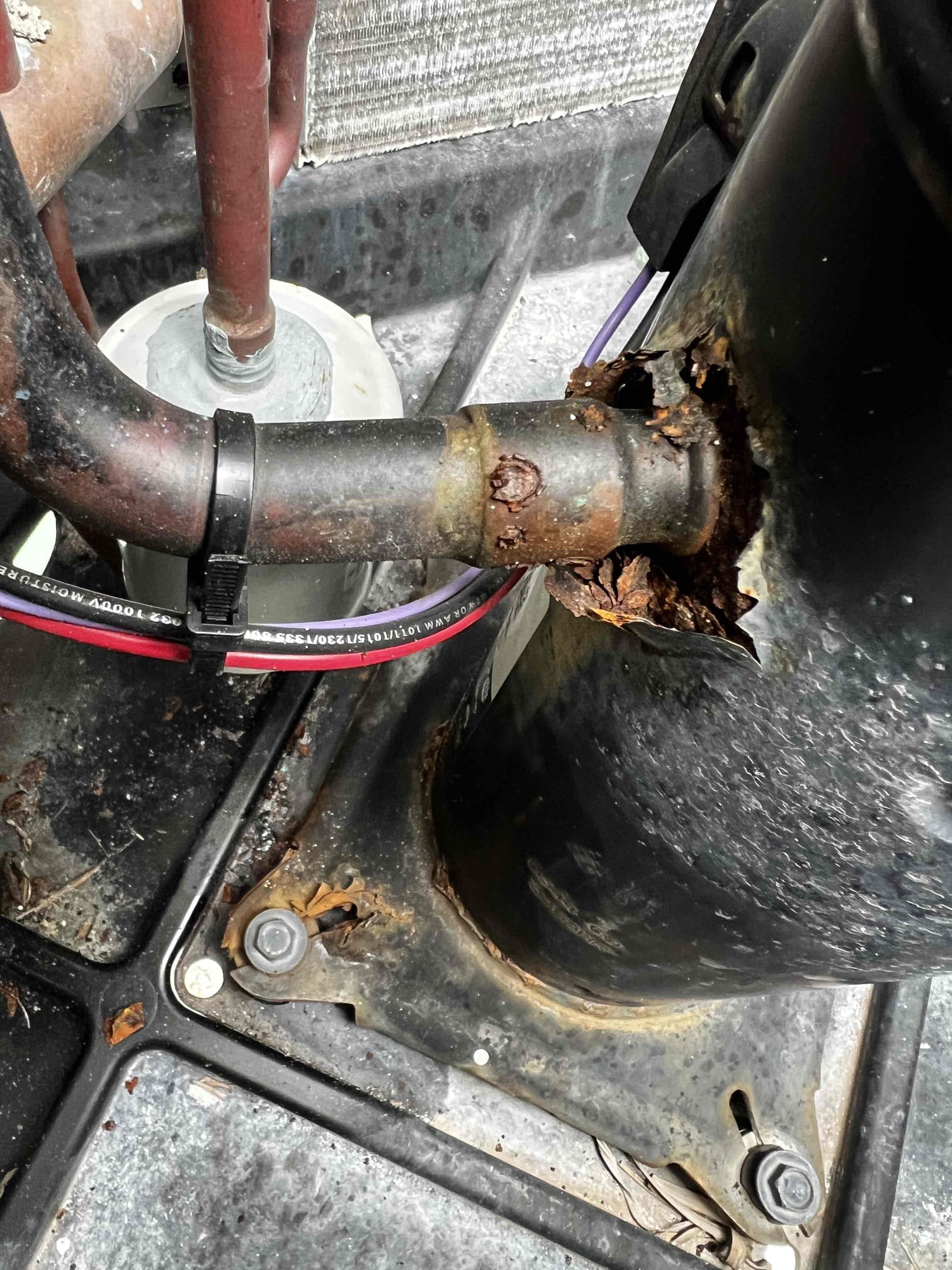

On arrival found unit not cooling due to out of refrigerant. Found condenser extremely corroded. Accumulator rusted out causing all refrigerant to leak. Will submit estimate for repair and replacement options. Made client aware unit is out of warranty and am not able to fully look over system since it is not functioning. After repairs, further issues might present themselves. Unit is not cooling at this time.
